Circulating Pump

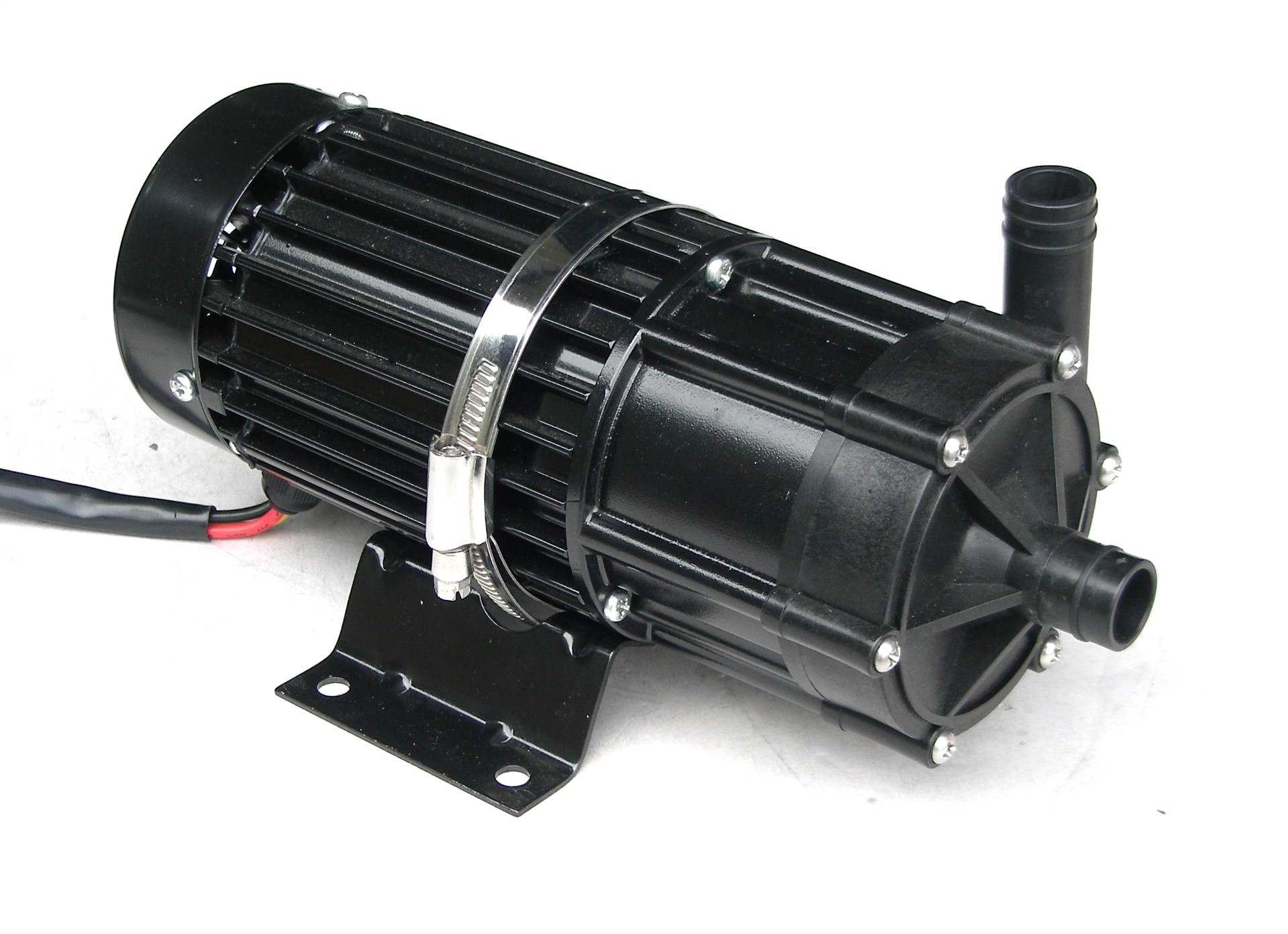

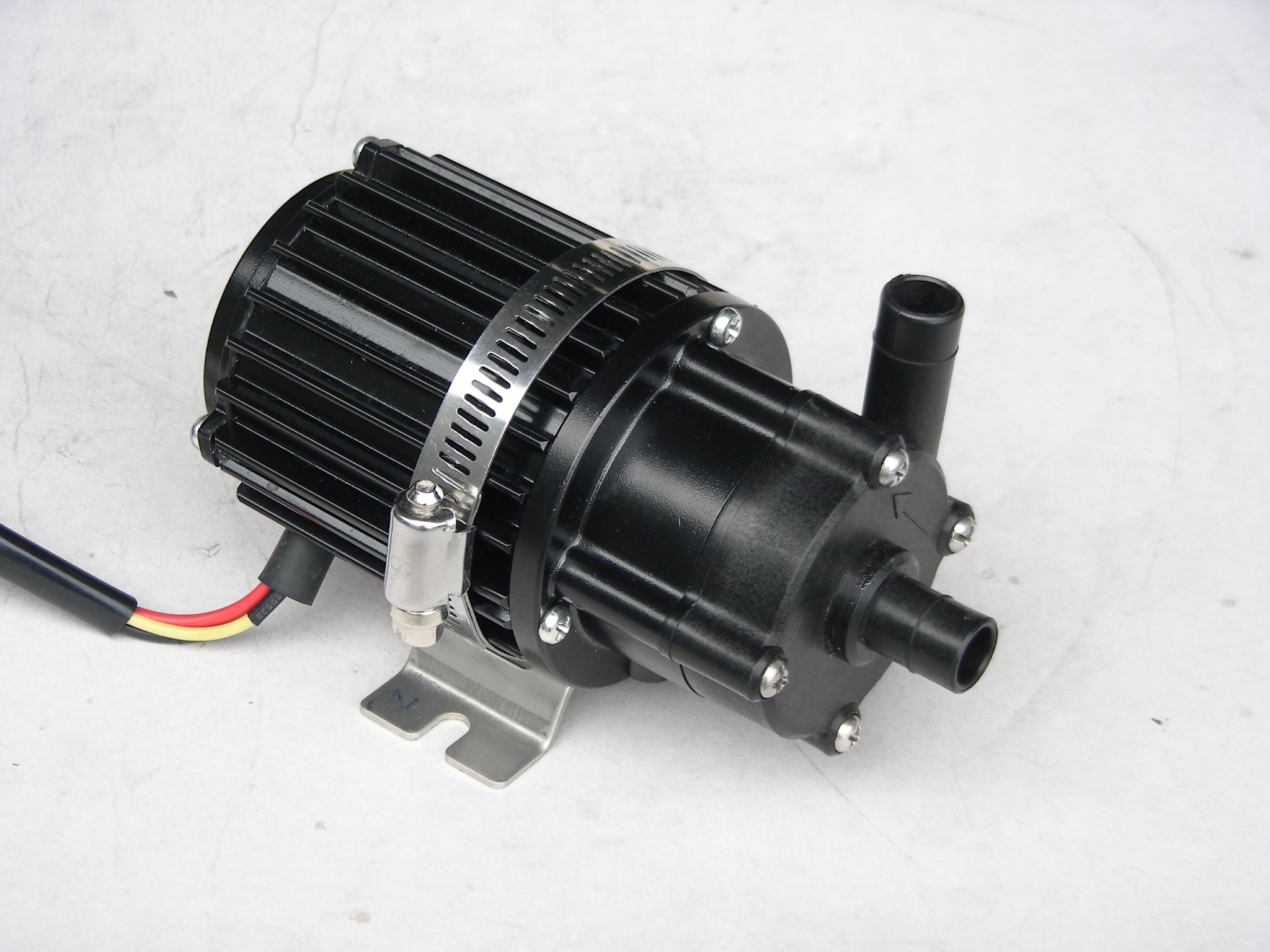

Magnetic Coupling Pump

Product application: Water heater system for buses.

Download
Model

Model

Voltage
Voltage

Range

Current
Watt
Output
Note

P047D024-003C

24

16-32

3.7

89

0.2bar/5500ℓ/h

5000C

P047D024-004C

24

16-32

6.6

158

0.4bar/6000ℓ/h

6000C

P047D012-007C

12

9-14

6.5

78

0.2bar/5200ℓ/h

5000C-12V

P047D024-011C

24

16-32

10.3

247

0.4bar/7200ℓ/h

6000C PLUS

P047D012-005C

12

9-14

8.9

107

0.2bar/6400ℓ/h

500S PLUS-12V

Feature

1. Low-temperature rise and durability.
2. Tenfold lifetime to AC brush motors.
3. Variable speed available and low noise.
4. High level of efficiency and energy-saving.
5. Totally design and manufacture in Taiwan.
6. Without carbon pollution, environmentally friendly, and free maintenance.

Motor protection

1.Reverse polarity: out of action when the positive and negative pole is reversed.

2.Soft start protection: slowly starting and speeding.

3.Overload protection: out of action when current is over 16A, starting afresh while loading lower than 16A.

4. Locked-rotor protection: out of action when the rotor is locked, starting afresh after the block is cleared.

5. DC24V over-voltage & lower voltage protection: 16~32V.

6. DC12V over-voltage & lower voltage protection: 9~14V.

7. Over-temperature protection: out of action when the motor temperature is over 85℃, starting afresh while lower than 80℃. (operating temperature range: -30℃ ~ 50℃.)

8. IP level: IP54
